Terrex that won't get confiscated:
Many many different models not easy to tell one apart from another. Some can order (export models) some not for sale.
http://slide.mil.news.sina.com.cn/l/slide_8_199_71991.html#p=1
大八轮战术开喷!我陆军11式轮式突击车实弹猛打
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:25:34

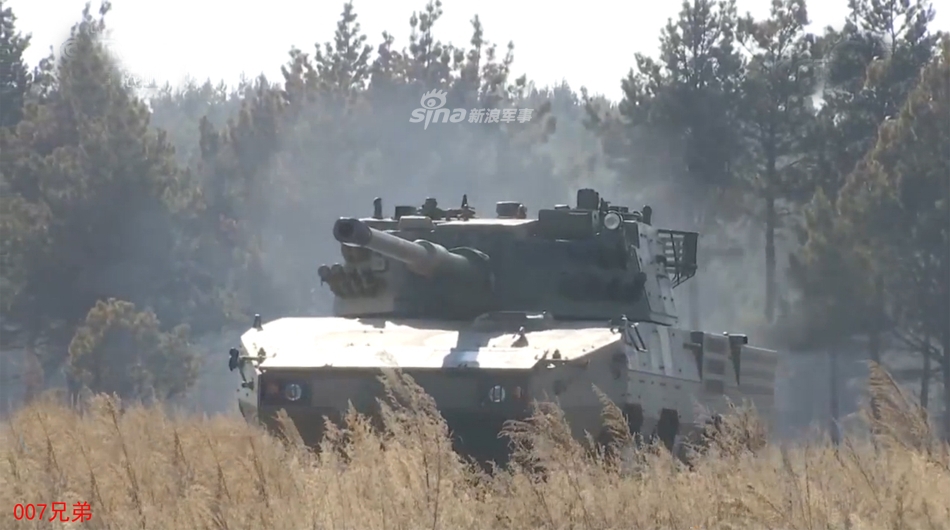

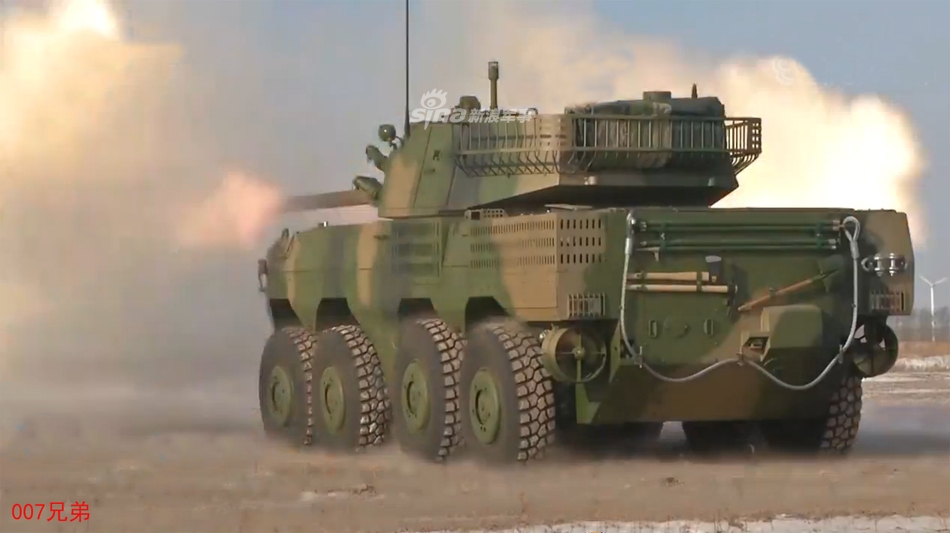

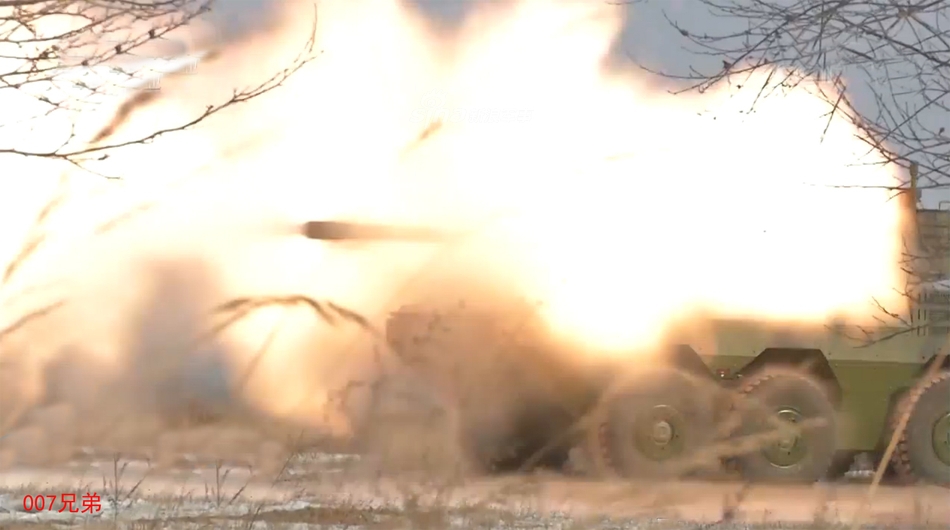

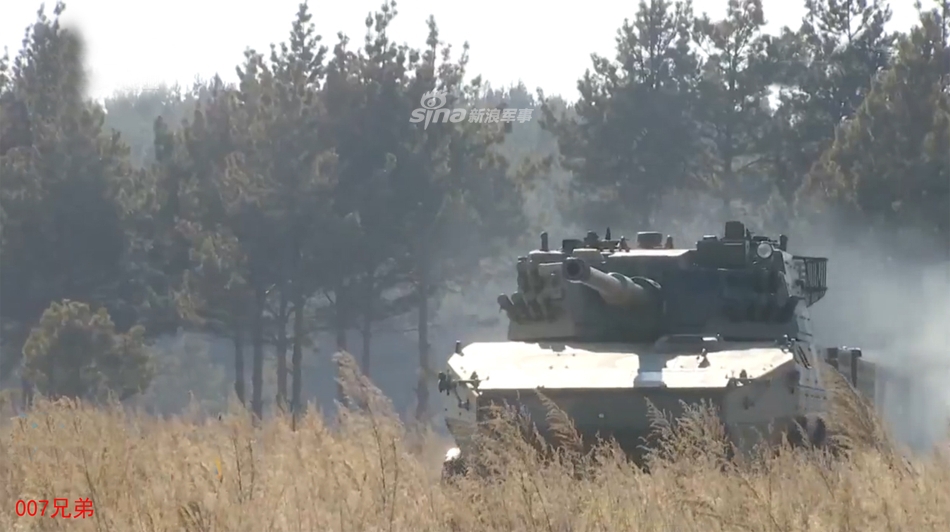

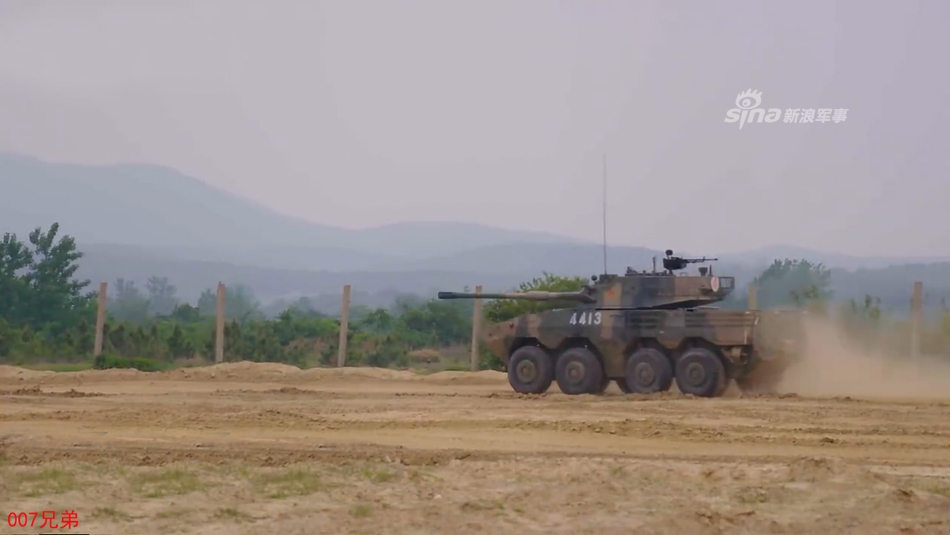

我陆军11式105毫米轮式装甲突击车实弹开火。11式轮式装甲突击车,是陆军快速反应力量的主要突击装备,用于实施快速部署、要域夺空和地面突击,摧毁敌装甲目标、野战防御工事,杀伤敌有生力量,夺占预定地域或目标。(来源:鼎盛007兄弟)
大八轮战术开喷!我陆军11式轮式突击车实弹猛打
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:25:34
-

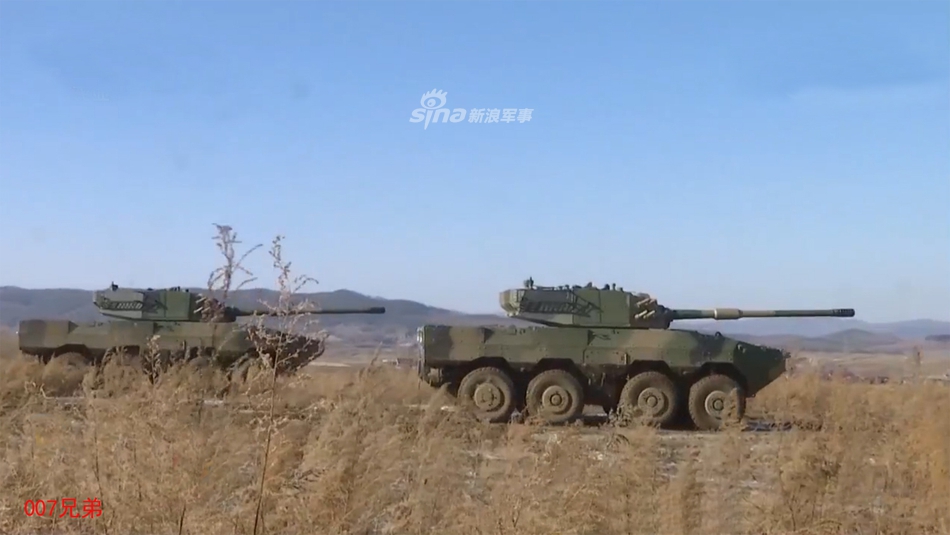

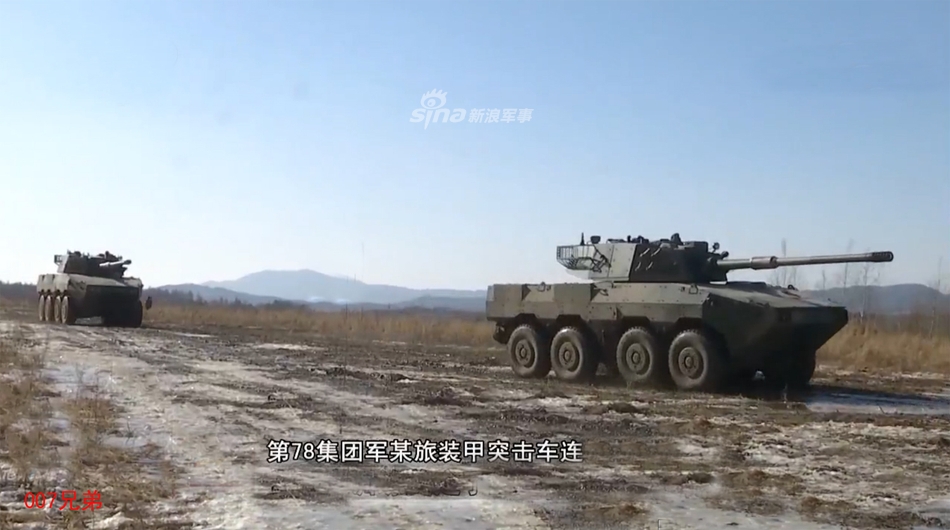

- 新浪军事深度:近日,网友曝光了海军陆战队涂装的ZTL11型105mm轮式突击车照片,这表明我军陆战队已经开始装备这型新锐的陆战快反利器。ZTL11型轮式突击车在网络上被称为大八轮。
大八轮战术开喷!我陆军11式轮式突击车实弹猛打
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:25:34
-

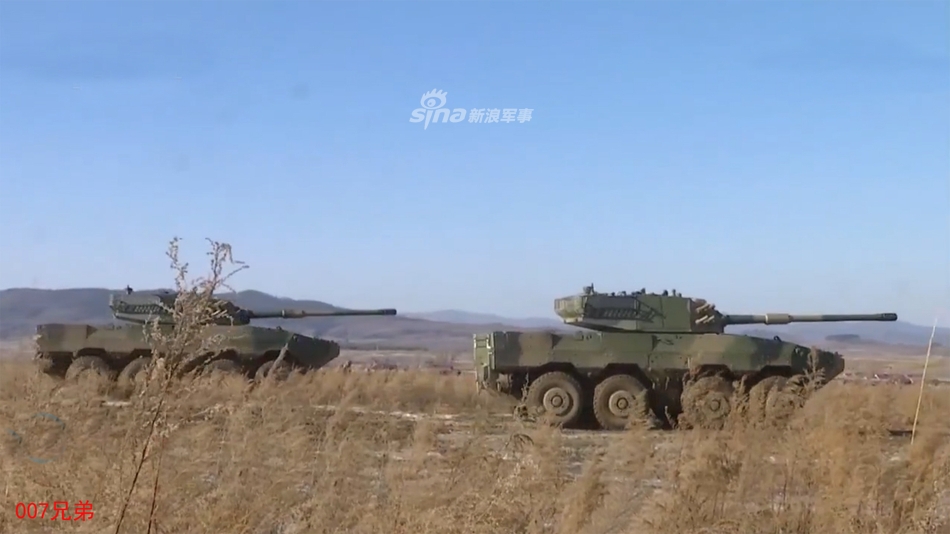

- 其显著的特征就是其具备高机动性的八轮驱动底盘,其赋予了11式轮式突击车优越的公路机动性,在车尾部装备了两具导管螺旋桨还赋予了其优良的水上机动性能。
-
- 11式轮突现在已经大规模装备了我军陆军快速反应部队,还曾参加我国9·3大阅兵,是陆军的明星装备。此次曝光的照片中,11式轮突被漆上了海军陆战队专属迷彩,这表明其已经做好了进入陆战队服役的准备。
大八轮战术开喷!我陆军11式轮式突击车实弹猛打
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:25:34
-
- 我们知道,现在我国海军陆战队的主要步兵战斗车辆是05型两栖步兵战车车族,其中包括05两栖装甲突击车、05两栖装甲步战车、05型两栖装甲指挥车和05型两栖装甲抢救车。05车族的性能优越
-
- 装备先进,突击车装备的105mm火炮和炮射导弹能够有效对付滩头坚固火力点和装甲车辆、步战车装备的30mm机关炮和反坦克导弹也能有效支援陆战队登陆作战
-
- 是陆战队可靠的战场伙伴和运输工具。然而,05车族是履带装甲车辆,尽管拥有优秀的涉水越野能力和防护力,但其重量大(战斗全重26吨以上),难以远程投送、机动速度慢。
-
- 而11式轮突的出现正好弥补了陆战队在远程投送,远距部署时重装备难以随动的问题,并且其道路机动速度和城市作战中更加轻巧灵活,
大八轮战术开喷!我陆军11式轮式突击车实弹猛打
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:25:34
-
- 正好满足了未来陆战队多样化环境部署作战的需求。同时,其装备的105mm火炮拥有与05车族相同的火力,在支援陆战队作战时也毫不逊色。
大八轮战术开喷!我陆军11式轮式突击车实弹猛打
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:25:34

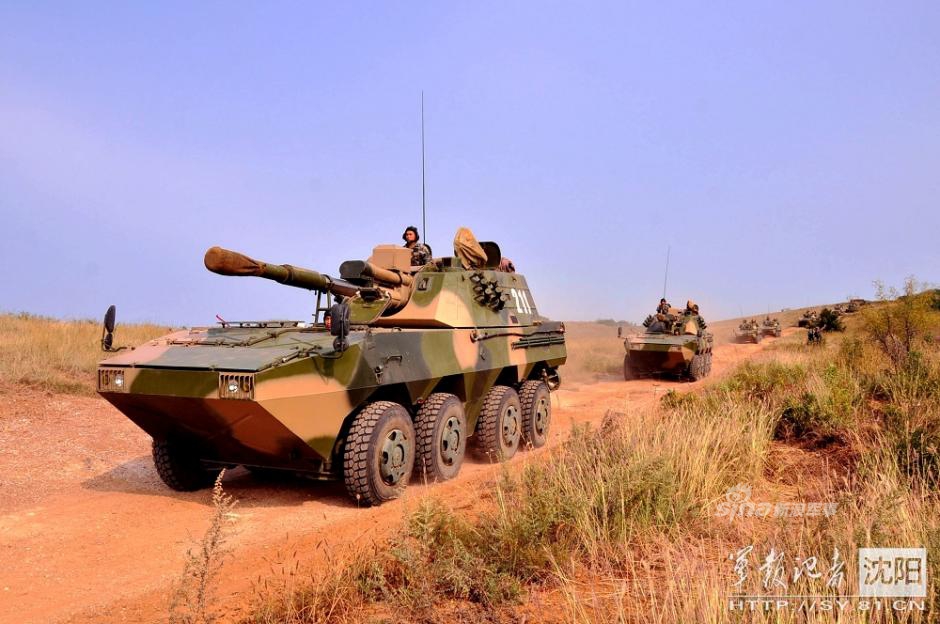

从之前陆军装备的图片上来看,11式轮突在炮塔上与09式轮战有了较大变化,强化了观瞄设备和稳定系统,使其有更好的射击稳定性。而在官方报道的多次演习中
-
- 陆军的11式轮突均有上镜,其表现也得到了官兵的一致好评。而从近日曝光的陆战队版来看,解放军对其的评价也很好,并依据未来的任务变化将其配属陆战队使用。
轮式战车与履带战车在登陆作战中其实是互补的互有优缺点的装备。对于登陆滩头必然会面对的软湿地况,履带式战车通行能力自然要优于轮式。但在随后确立滩头向内发展阶段,轮式战车却便于依托公路网络迅速向纵深突击稳固登陆区域。因此新接八轮系战车,未来可能是会出现05系与八轮系的轻重组合,更好应对登陆的不同时期作战任务。
另外值得注意的是,目前海军陆战队某两个旅以05两栖战车为主,都已经满编。而这次换装八轮车组自然要么是新组建某旅级单位,要么就是某旅换装,但其换下05两栖战车还没到退役年限,可能转交另外新单位。两种情况无论如何,都标明未来可能会新组建海军陆战队单位,会不会是传闻的某些陆军转隶海军的单位,值得我们继续关注。(作者署名:浩汉防务)
http://slide.mil.news.sina.com.cn/l/slide_8_199_71990.html#p=5
跑得快打得准!我陆军09式轮式榴弹炮集群开火
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:09:40
-

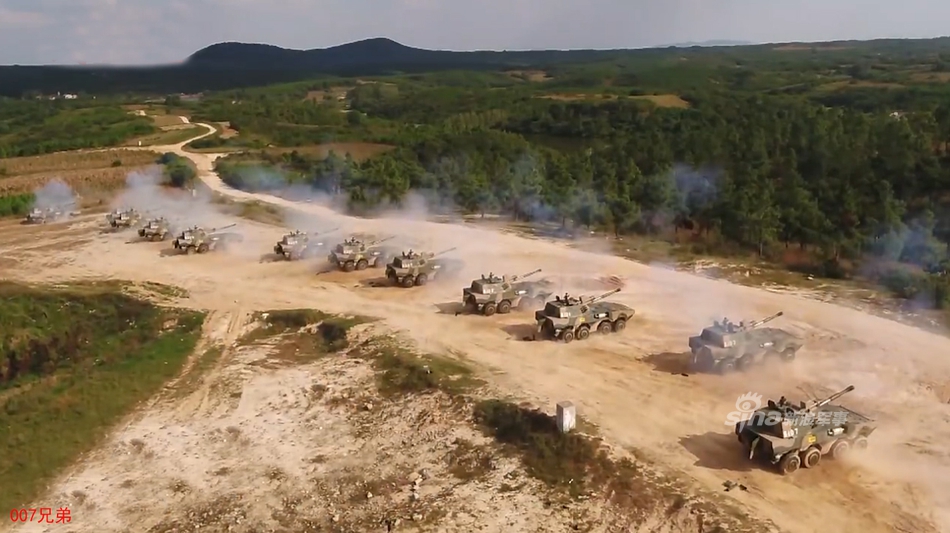

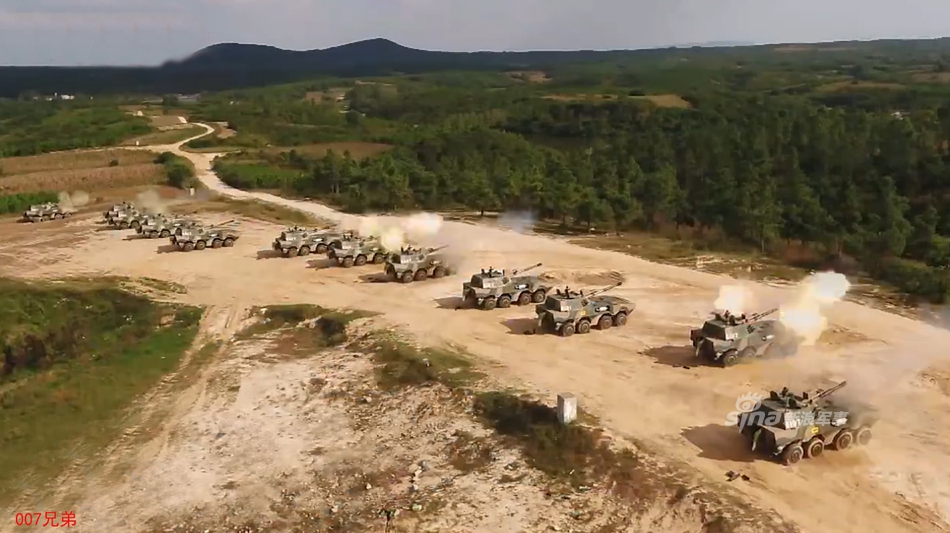

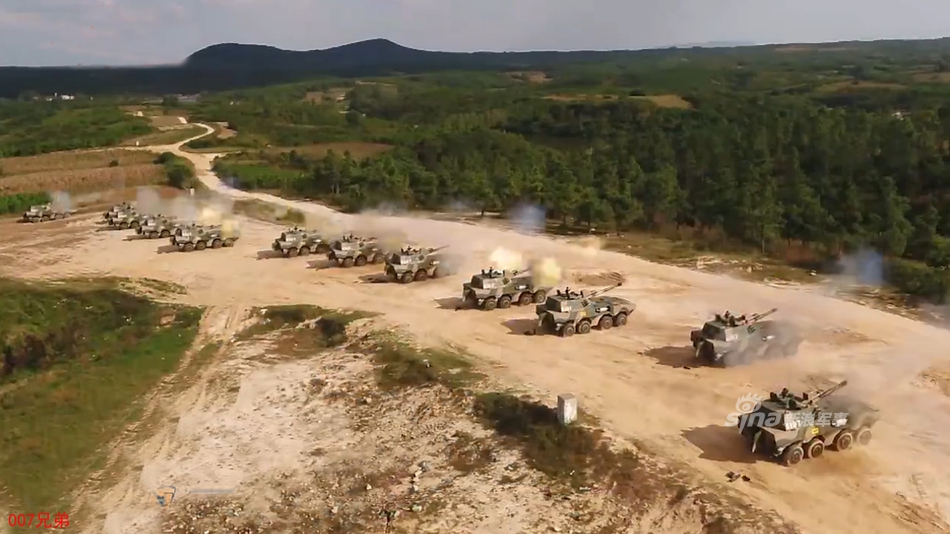

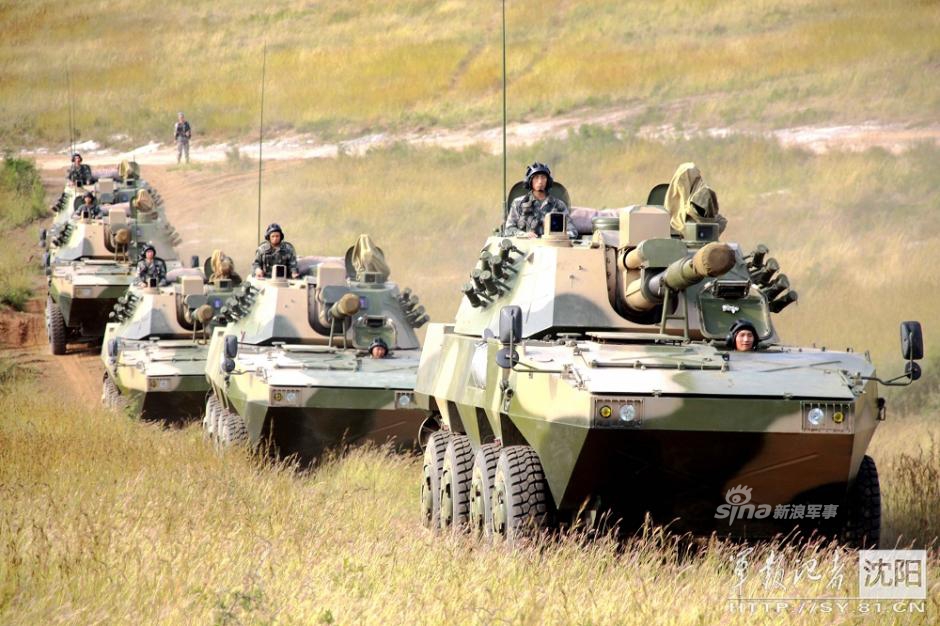

- 我陆军中型轮式快反合成旅炮兵营的装甲轮式122毫米自行榴弹炮群开火。09式是目前世界最先进的122毫米自行榴弹炮,火控系统甚至比05式155毫米自行加榴炮还先进。可不经试射,直接展开非常精确的效力射,实现目标首群覆盖。09式能在停止行进1分钟后开炮, 实现了火炮的操瞄自动化和单炮自主作战。由于有了先进火控,09式全连打击暴露目标,每炮打一发就能精确的完成既定任务。(来源:鼎盛007兄弟)
-
- 新浪军事深度:在嚷嚷淘汰122毫米榴弹炮的若干观点中,有一种是让120毫米迫榴炮来替代122毫米榴弹炮。他们认为既然120毫米迫榴炮的炮弹威力与122毫米榴弹炮相当,且诸如俄罗斯新一代120毫米迫榴炮2S42在发射新行弹药时射程亦可达18公里,既然两者威力和射程都差不多,那干嘛还留着122毫米榴弹炮呢。让120毫米迫榴炮直接和152/155毫米加榴炮直接组成两级压制炮兵体系岂不是更好。
120毫米迫榴炮最早出现于1980年代中期,其研制的动因有两点:一则是为了为空降兵寻求一种可空降的轻型自行火炮;二则是要简化空降兵部队中种类繁杂的各种火炮。迫榴炮兼顾迫击炮和榴弹炮的弹道性能,从功能上可以认为是迫击炮的延伸,但是从结构上则可以认为是超级轻量化的榴弹炮。
-
- 之所以被认为是超级轻量化的榴弹炮,是因为其在发射炮弹时的最大初速只有376米/秒。要知道即便是M-30型122毫米榴弹炮,其最大初速也得有515米/秒。更小的初速,意为这更小的膛压和后坐力,这样火炮的身管和反后坐机构就可以做的很轻。
-
- 例如俄罗斯的2B16型120毫米牵引迫榴炮可以将炮重做到1.2吨左右,而以D30为基础的超轻122毫米榴弹炮最多也就是减重到1.85吨。2S9型120毫米自行迫榴炮战斗全重只有9吨不到,而目前世界上还没有谁能把履带式122毫米自行榴弹炮的全重做到10吨上下的。
跑得快打得准!我陆军09式轮式榴弹炮集群开火
支持 键翻阅图片
列表查看
全屏观看
2019.05.20 08:09:40
-
- 在性能上,2S9型120毫米迫榴炮在发射迫弹时,最大初速331米/秒,最大射程7.75公里;发射榴弹时,最大初速367米/秒,最大射程8.85公里。为了进一步增大120毫米迫榴炮的射程,俄罗斯为其研制了火箭增程榴弹,使其射程进一步提高到了12.8公里。
俄罗斯在2S9之后,研制了射程更远的2S31型120毫米迫榴炮,目前俄罗斯最新的2S42型120毫米迫榴炮其实就是2S31的现代化量产型号。新的120毫米迫榴炮使用了更长倍径的身管,从而通过提高初速让炮弹的射程更远。2S31在发射迫弹时初速367米/秒,最大射程达到8.8公里。之前有报道说2S31发射新型榴弹时射程可以达到18公里,其实这个榴弹是底排或者火箭增程弹。
关于中国的120毫米迫榴,我们是以2S9的战斗部为基础进行了弹药本地化设计的,初速和射程与原版2S9和2S31略有出入,不过可以肯定的是发射普通迫弹和榴弹的射程都没有超过10公里。120毫米迫榴炮发射普通弹射程不超过10公里,122毫米榴弹炮发射底凹榴弹射程18公里,前者是万万不能替代后者的。

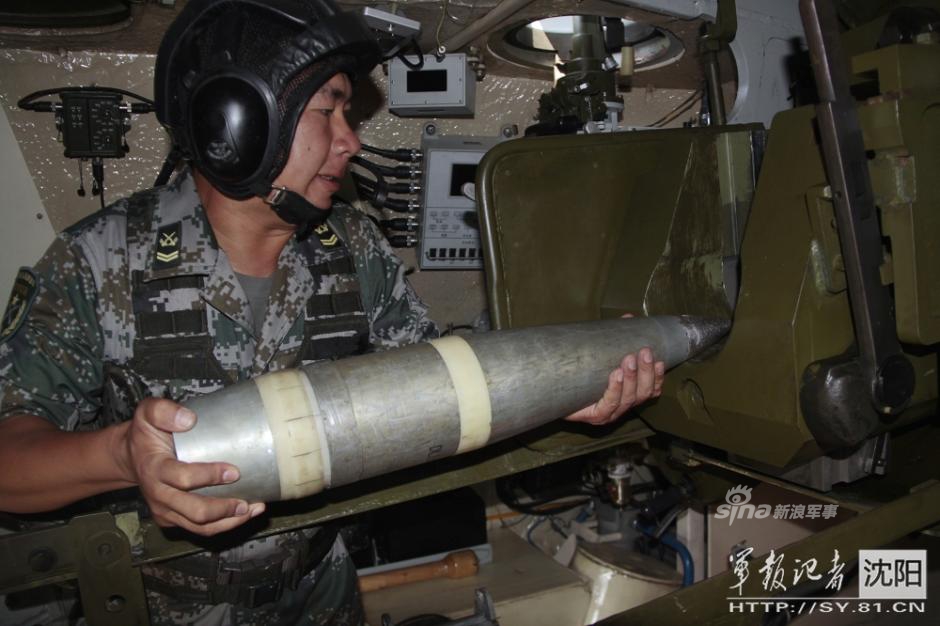

况且从编制上讲120毫米迫榴在我军是编入机械化部队合成营的,而122毫米榴弹炮则是旅一级的支援火炮,两者之间完全是两条平行线。从威力上讲,120毫米迫弹弹重13.9千克,其中装药1.8千克左右;120毫米榴弹弹重19.8千克,其中装药5千克。与之相比,122毫米榴弹弹重22千克,其中装药3.5千克。
-
- 由此可知在大部分情况下,120毫米迫榴炮的弹丸威力是不足以与122毫米榴弹炮相提并论的,前者只有在发射榴弹时威力比后者大一些。不过在另外一个方面评价弹丸的威力不仅仅要看装药的多少,也要看破片的质量。因为如果碰到轻装甲目标时,显然破片比爆轰波更有杀伤力。
-
- 上所述,在现在并不存在什么120毫米迫榴炮代替122毫米榴弹炮的可能。如果强硬的通过加长身管和增加装药来增加射程的话,120毫米迫榴炮的后坐力和重量急剧增加,其也就失去了存在的意义,如果真的到哪天谁取代谁就不好说了。军队的编制和火力配系都有其专门要考量的特点,不同级别的编队对于压制火力有着不同的要求,火力和射程固然重要,但是用的起,跑的快才是王道。脱离了这些来谈谁替代谁,谁统一谁只能是无厘头式的过家家。(作者署名:炮霸707)
Http://slide.mil.news.sina.com.cn/l/slide_8_199_71991.html#p=1
Big eight round tactics open! I Army 11 wheeled assault vehicle live ammunition
Support button flip through pictures list view
Full screen view
2019.05.20 08:25:34
My Army's 11-type 105mm wheeled armored assault vehicle fired on fire. The 11-wheeled armored assault vehicle is the main assault equipment for the Army's rapid response force. It is used to implement rapid deployment, domain capture and ground assault, destroy enemy armor targets, field defense fortifications, kill enemy forces, capture the intended territory or aims. (Source: Dingsheng 007 brothers)
Big eight round tactics open! I Army 11 wheeled assault vehicle live ammunition
Support button flip through pictures list view
Full screen view
2019.05.20 08:25:34
Sina military depth: Recently, netizens exposed the photos of the ZTL11 105mm wheeled assault vehicle painted by the Marine Corps, which indicates that our Marine Corps has begun to equip this new type of land combat fast weapon. The ZTL11 wheeled assault vehicle is called the Big Eight Wheel on the network.
Big eight round tactics open! I Army 11 wheeled assault vehicle live ammunition
Support button flip through pictures list view
Full screen view
2019.05.20 08:25:34
Its distinctive feature is its highly maneuverable eight-wheel drive chassis, which gives the 11-wheeled assault vehicle superior road maneuverability, and the two-engined propellers at the rear of the car also give it excellent water maneuverability.
The 11-round rotation has now been equipped with our army's rapid response force on a large scale. It has also participated in the 9-3 military parade in China and is the star equipment of the army. In the photo of the exposure, the 11-type wheel is painted with the exclusive camouflage of the Marine Corps, indicating that it is ready to enter the Marine Corps.
Big eight round tactics open! I Army 11 wheeled assault vehicle live ammunition
Support button flip through pictures list view
Full screen view
2019.05.20 08:25:34
We know that the main infantry fighting vehicles of our Marine Corps are now Type 05 amphibious infantry fighting vehicles, including 05 amphibious armored assault vehicles, 05 amphibious armored combat vehicles, 05-type amphibious armored command vehicles and 05-type amphibious armored rescue vehicles. car. 05 car family's superior performance
Equipped with advanced equipment, the 105mm artillery and artillery-launched missiles of the assault vehicle can effectively deal with the strong firepower points and armored vehicles of the beachhead, and the 30mm cannons and anti-tank missiles equipped with the combat vehicles can also effectively support the landing of the Marine Corps.
It is a reliable battlefield partner and transportation vehicle for the Marine Corps. However, the 05 car family is a tracked armored vehicle. Although it has excellent wading and off-road capability and protection, its weight is large (more than 26 tons of combat weight), it is difficult to remotely deliver, and the maneuvering speed is slow.
The emergence of the 11-type rounds just makes up for the problem that the Marine Corps is difficult to follow during long-distance delivery and long-distance deployment, and its road maneuvering speed and urban combat are more lightweight and flexible.
Big eight round tactics open! I Army 11 wheeled assault vehicle live ammunition
Support button flip through pictures list view
Full screen view
2019.05.20 08:25:34
It just meets the needs of the future deployment of the Marine Corps' diverse environment. At the same time, its equipped 105mm artillery has the same firepower as the 05 car, and it is not inferior when supporting the Marine Corps.
Big eight round tactics open! I Army 11 wheeled assault vehicle live ammunition
Support button flip through pictures list view
Full screen view
2019.05.20 08:25:34
Judging from the pictures of the former Army equipment, the 11-type wheel has a great change in the turret and the 09-style round of war, strengthening the sighting equipment and stability system, so that it has better shooting stability. In the many exercises reported by the official
The Army's 11-type rounds are all on the mirror, and their performance has also been well received by the officers and men. Judging from the recent exposure of the Marine Corps, the PLA has also evaluated it well and assigned it to the Marine Corps based on future mission changes.
Wheeled chariots and crawler chariots are complementary equipments with advantages and disadvantages in landing operations. For the soft wet conditions that the beachhead will inevitably face, the capacity of the crawler chariot is naturally better than the wheeled one. However, in the subsequent development of the beachhead inward development, the wheeled chariots were able to quickly and firmly slam the landing area by relying on the road network. Therefore, the new eight-wheeled chariot, in the future may be the light and heavy combination of the 05 and the eight-wheel system, better to deal with the different missions of landing.
It is also worth noting that some of the two brigades of the Marine Corps are mainly based on the 05 amphibious vehicles, which are already fully compiled. This time, the replacement of the eight-wheeler group is naturally a new formation of a brigade-level unit, or a brigade reloading, but its replacement for the amphibious chariot has not yet reached the retirement period, and may be transferred to another new unit. In either case, it is indicated that the new Marine Corps unit may be formed in the future. Will it be a rumor that some of the Army’s units will be transferred to the Navy, which deserves our continued attention. (Author's signature: Haohan Defense)
Http://slide.mil.news.sina.com.cn/l/slide_8_199_71990.html#p=5
Run fast and play! My Army 09 wheeled howitzer cluster fired
Support button flip through pictures list view
Full screen view
2019.05.20 08:09:40
The armored wheeled 122mm self-propelled howitzer group of the Army's medium-sized wheeled fast-reaction synthetic rifle barracks opened fire. The Type 09 is the world's most advanced 122mm self-propelled howitzer. The fire control system is even more advanced than the 05-type 155mm self-propelled howitzer. Can be launched without a test, directly launch a very accurate shot, to achieve the target group coverage. The Type 09 can be fired after stopping for 1 minute, realizing the automation of the gun and the self-operation of the single gun. Thanks to advanced fire control, the 09-style full-strike strike targets, and each shot can accurately complete a given task. (Source: Dingsheng 007 brothers)
Sina Military Depth: One of several viewpoints in the elimination of 122mm howitzers was to replace the 122mm howitzer with a 120mm mortar. They believe that since the 120mm mortar cannon has the same power as the 122mm howitzer, and the Russian new generation 120mm mortar cannon 2S42 can also shoot 18km when launching new ammunition, since both power and range are similar, Why do you still have a 122mm howitzer? It is better to have a 120mm mortar and a 152/155mm plus a howitzer directly form a two-stage suppression artillery system.
The 120mm mortar was first introduced in the mid-1980s. There are two reasons for its development: one is to find a light self-propelled artillery that can be airborne for airborne troops; the other is to simplify the various types of airborne troops. Kind of artillery. The forceful performance of the mortar and howitzer and the howitzer can be considered as an extension of the mortar, but it can be considered as a super lightweight howitzer.
It is considered to be a super lightweight howitzer because its maximum initial velocity when launching a projectile is only 376 m/s. Be aware that even the M-30 122mm howitzer has a maximum initial velocity of 515 m/s. The smaller initial velocity means smaller rolling and recoil, so that the artillery's body and recoil mechanism can be made light.
For example, Russia's 2B16 120mm towed cannon can achieve a cannon weight of about 1.2 tons, while the D30-based ultra-light 122mm howitzer can lose weight to 1.85 tons. The 2S9 120mm self-propelled howitzer has a total weight of less than 9 tons. At present, no one in the world can make the full weight of the crawler 122mm self-propelled howitzer up to 10 tons.
Run fast and play! My Army 09 wheeled howitzer cluster fired
Support button flip through pictures list view
Full screen view
2019.05.20 08:09:40
In terms of performance, the 2S9 120mm mortar cannon has a maximum initial velocity of 331m/s and a maximum range of 7.75km. When launching a grenade, the maximum initial velocity is 367m/s and the maximum range is 8.85km. In order to further increase the range of the 120mm mortar, the Russian extended rockets were developed to increase the range to 12.8 kilometers.
After 2S9, Russia developed a 2S31 120mm mortar with a longer range. At present, Russia's latest 2S42 120mm mortar is actually a modern production model of the 2S31. New 120
