中国电磁装甲曝光 或配备下代坦克重量减轻一半(图)
中国电磁装甲曝光 或配备下代坦克重量减轻一半(图)
78

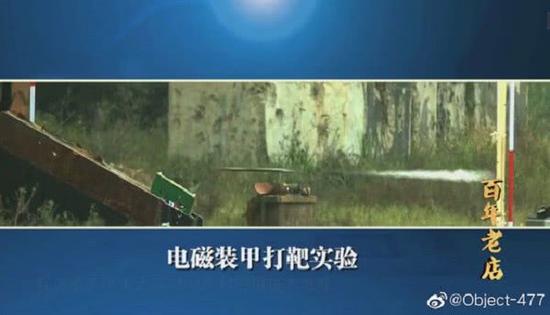

国产电磁装甲打靶试验
近日网上出现国产电磁装甲的图片，它表明国产电磁装甲已经在发展之中，国产第四代主战坦克已经进入前期技术攻关阶段。
电磁装甲是新一代装甲，它的主要作用是采用电磁能拦截来袭各种反装甲武器，被视为四代主战坦克最为理想的防护技术。
众所周知，装甲技术是坦克关键技术之一，尽管现代装甲已经从当初的均质钢装甲发展到复合装甲、反应装甲等多种形式装甲。不过从原理上来讲，这些装甲都属于被动防护类型。它们的抗打击能力主要来源于装甲厚度、强度等指标。装甲防护增强以重量增加为代价，现代坦克防护能力迅速增强，但是重量也在一路提高。西方三代主战坦克已经突破70吨大关，俄罗斯最新主战坦克也超过了50吨，海外资料则认为中国99A主战坦克战斗全重可能接近60吨。

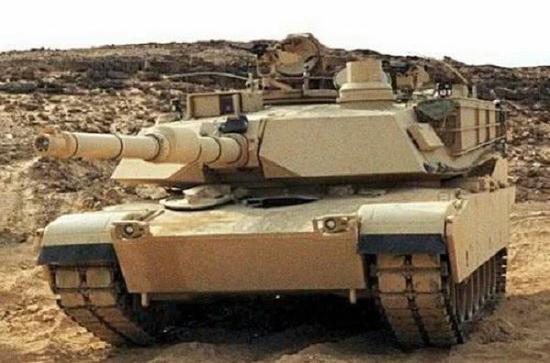

现代主战坦克战斗全重已经突破70吨大关
新型装甲固然增加了坦克防护，但是沉重的重量对于坦克机动性能也造成了非常不利的影响，战略/战役机动受到影响更大。海湾战争美国用了半年的时候，才将重装部队部署到位，伊拉克战争，美国主力第四机械化步兵师在战争结束之后才抵达战场。因此国内外坦克工业普遍认为第四代主战坦克应该控制重量，以便提高机动性能。前面说过传统装甲防护能力依靠重量增加来提高，这样第四代主战坦克就需要新体制装甲来增强防护能力，电磁装甲就是大家心目中的明星。
电磁装甲，顾名思义就是以电磁能来削弱来袭反装甲武器，电磁装甲分为两种，一种是被动电磁装甲，它的装甲分为两层，每层与大功率电容相接，来袭穿甲弹或者射流击穿装甲之间的绝缘层形成电路，进而生产强大磁场，在磁流体动力效应影响下，破坏或者干扰来袭穿甲弹或者射流，以达到防护的目标。还有一种是主动电磁装甲，它与现在主动防护系统相当，不过它发射的是电磁脉冲，而不得射弹，同样利用磁场来“弹开”来袭装甲弹或者射流，也有利用磁场发射防护板拦截来袭穿甲弹或者射流。

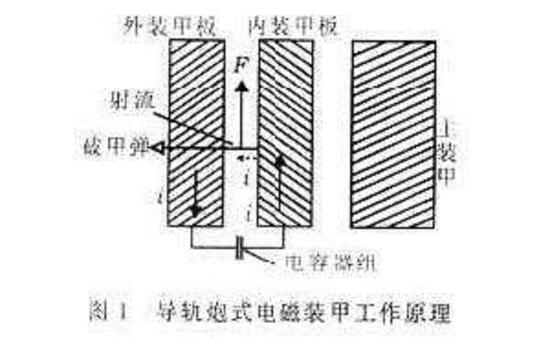

被动电磁装甲原理

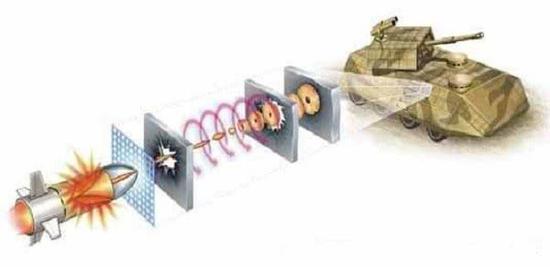

主动电磁装甲原理
电磁装甲最大优点就是不需要堆砌材料来提高坦克防护性能，按照美国陆军评估，如果配备电磁装甲，可以将现代主战坦克战斗全重降低50%，效果显著。未来主战坦克配备电磁装甲之后战斗全重可以控制在30吨以下，它的防护能力却与60吨重的M1A2主战坦克相当。即便发动机性能不变，坦克战术机动性能也会得到成倍提高，对于道路、桥梁压力更小，战略/战役投送更加方便，现在1架C-17运输机只能空运1辆M1A2主战坦克，未来主战坦克可以增加到2辆。另外还有助于实现全电坦克，从发展角度来看，电能替代机械能和化学能是未来坦克趋势，例如采用电驱动/传动系统、电能火炮等等，再加上电磁装甲，从而实现全电坦克。不过电磁装甲也存在诸多技术难关需要攻克，例如电磁防护理论还处于研究阶段，需要进一步完善和提高，电源问题也令人头疼，坦克体积和重量有限，如何获取大功率、持续电源是一个难点。

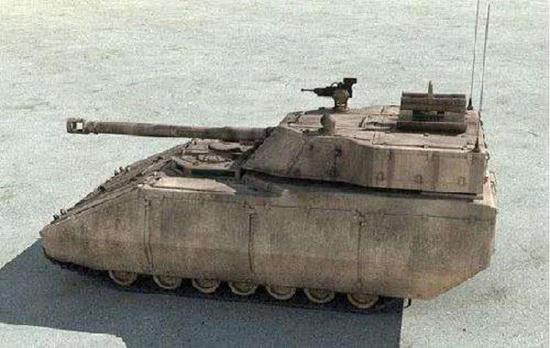

凭借电磁装甲，未来主战坦克战斗全重可望降低一半
根据相关资料，国外从上世纪70年代就开始电磁装甲理念研究，80年代进入工程研究和前期试验阶段。美国、苏联及英国等发达国家都进行了电磁装甲研究和攻关。90年代以后，随着国际形势缓和，四代坦克发展进入停滞状态。不过电磁装甲研究却没有止步，美国等发达国家在90年代后期完善了电磁装甲模型，并且在新世纪初进行了紧凑型电源等关键设备研制工作。
根据国外坦克技术发展，中国相关单位也开展了电磁装甲技术研究和攻关工作。从相关图片来看，相关单位试制成功电磁装甲早期模型，正在进行电磁装甲防护机型、作用机制等方面研究，为未来配备国产第四代主战坦克打好基础。（作者署名：小飞猪观察）
